GD=G.raphic D.raw -Building, Tags, Use TTF's, Dings, Charsets, Draw, all in your FM

YOU CAN MAKE CHARSETS IN GD!
May 15, 2005
From: Moondogee

GOT IT Rough draft

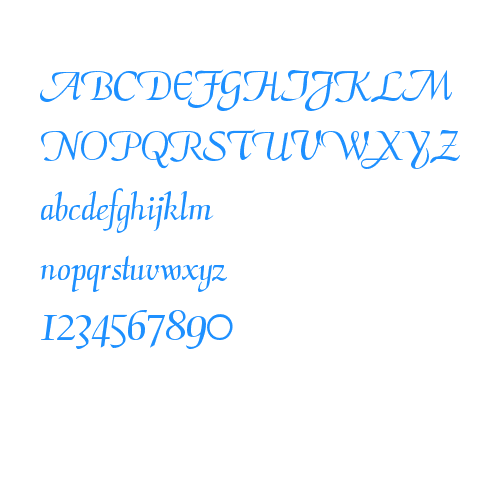

Admiral-Charset.php

I asked these ?'s

?1.)
Do I need to define the.ttf file for each line of text?
CAUSE I did!

A1.)
YES!

?2.)
I can make a png but,... even though I changed the script at the top and the bottom to be a jpg I got a blank image square?

A2.)
I'm not understanding this Yet! LOL

***UPDATE***

You need to define the script to produce a jpg image by using jpeg in the script. Both at the top and the bottom. Then it will give you a .jpg image of the char-set.

Also your .TTF file must be in the same sub-directory.
It works by "Truncating" the URL.

You can use the php scripts over and over again as "Templates". Just change the ttf file inside of the .php script. I rename the php to the ttf name. Then I T/L, I rename the file with the ttf name and a extension that I coded the charset to be: ,png .jpg .or gif and it changes into a image file.

If you rename the .php file in your FM by using the rename function it will NOT work. BONK blank image square. I also tested transloading a txt file and renaming it with a extension of .jpg as that is what I defined the image format to be. Nope BONK again blank image square.

This is my first swing at a charset. It's very basic. It can be done much better. I was so jazzed I posted it up so you all would catch this GD Graphic fever with me!

Admiral-Charset.txt

Admiral-Charset.php


Of course fine tune it to your liking!

Example One:

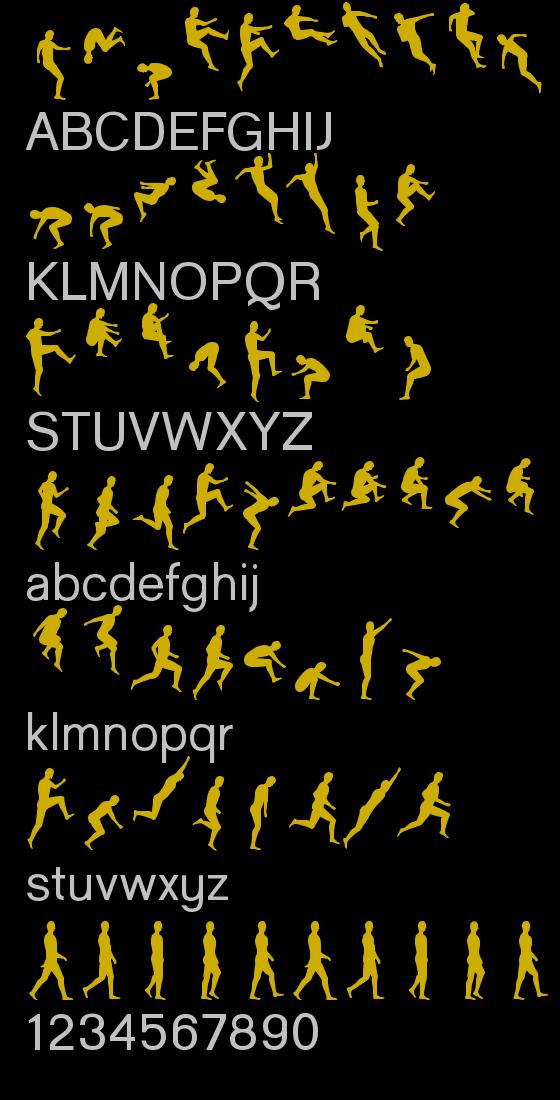

Swifty Charset = DETAILED_INSTRUCTS

This has very detailed instructions in the script. It's designed for new scripters learning about GD and PHP. It is basically a template. If you create a template like this you think others might like to use. Please post it or email one of us. Good Templates are always needed!


swiftycharset_DETAILED_INSTRUCTS.php

swiftycharset_DETAILED_INSTRUCTS.txt

(' I ', talking to, Me, and Myself. A internal dialog:)

KeyRisT Daug! All those instructions in the file and I can't see what the heck I am working with. You are confusing me more than teaching me. I see all that text and my brain STOPS thinking!

Can I have just darn code PLEASE!?

Yup I'z hear you Me and Myself.
I agree! So here you are.

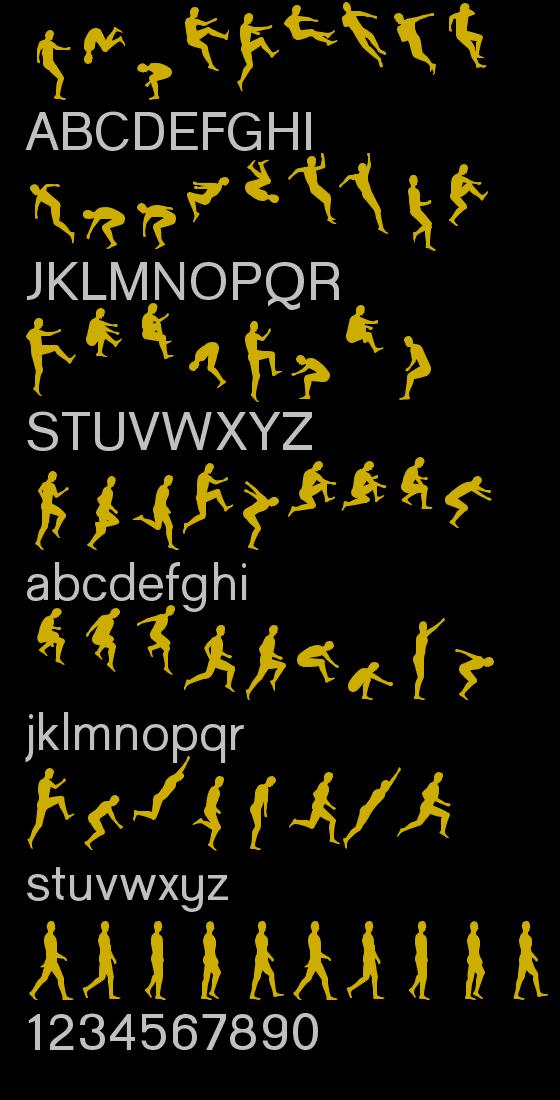

http://www.scri8e.com/GD/1-SewS/ttf/swiftycharset_JUST_THE_CODE_DUDE.txt

http://www.scri8e.com/GD/1-SewS/ttf/swiftycharset_JUST_THE_CODE_DUDE.php

Example Two:

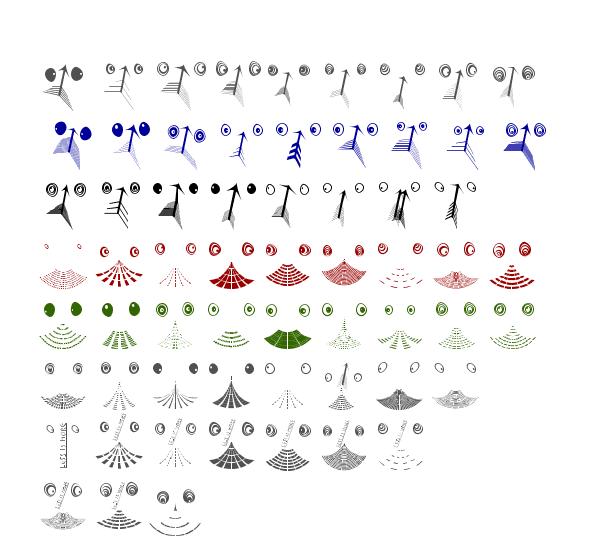

You can make each line of text different colors, and sizes if you like. In this case it will be images assigned to the letter and number characters of this ding bat.

LucSanFacescharset.txt

LucSanFacescharset.php


This is where you start to define the color of the font.

DEFINE A COLOR
$blue = ImageColorAllocate($im, 0x00, 0x00, 0x99);
$green = ImageColorAllocate($im, 0x33, 0x66, 0x00);
$red = ImageColorAllocate($im, 0x99, 0x00, 0x00);
$grey = imagecolorallocate($im, 0x51, 0x51, 0x51);
$black =imagecolorallocate($im, 0, 0, 0);

Then you reference each line of text by using the name of the color. In this example it is grey. You can name your colors whatever you like. You must use that name to call up the correct thing in the script though.

// The text to draw
$text = 'ABCDEFGHI';
// Replace path by your own font path
$font = 'LucSanFaces.ttf';
// Add the text; size, angle, x y
imagettftext($im, 35, 0, 40, 100, $grey, $font,

I use hex color codes because I know them in my head. RGB I do not know at all. Yes they are there. Just a bit different than what we are use to. This is blue #000099

0x00, 0x00, 0x99);
You need to proceed each set of 2 numbers with 0x
Now it looks familiar huh?

Understanding this part of the script

35, 0, 40, 100, $grey,

35 = Size of Text or "Point Size"

40 = 40 pixels indented from the left side

100 = 100 pixels down from the top or north of the page

grey = What color pallet to draw with

You want each letter a different color?

Then you need to write a text string for each one.
Tell it what it is going to be when it grows up to be a image.

Example Three:

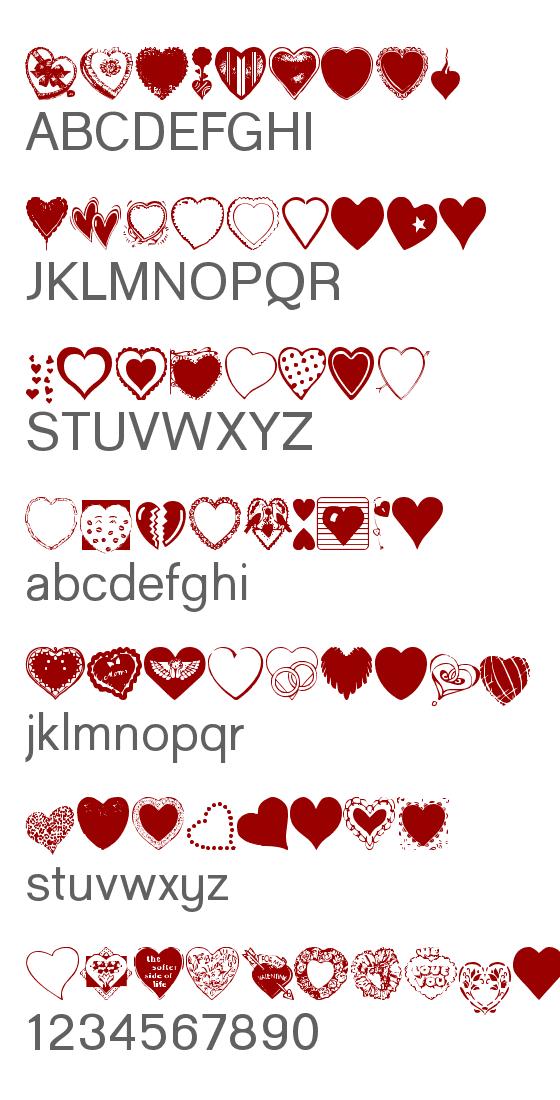

Hearts Galore Charset

http://www.scri8e.com/GD/1-SewS/ttf/heartsgalore_charset_JUST_THE_CODE_DUDE.php

http://www.scri8e.com/GD/1-SewS/ttf/heartsgalore_charset_JUST_THE_CODE_DUDE.jpg

http://www.scri8e.com/GD/1-SewS/ttf/heartsgalore_charset_JUST_THE_CODE_DUDE.txt

http://www.scri8e.com/GD/1-SewS/ttf/heartsgalore_ALL.zip

Zip contains heartsgalore.ttf, php file, txt file, and jpg file

From:sewsally
Group: news:alt.discuss.scripting.php
Subject:Carved Text?
Date:Tue, May 17, 2005, 6:47pm

Carved in Stone....

Here you go...the font and the background are in the zip.

Detailed version explained:

I explained most of the various parts
and what they do in this txt file.

The draw part of Sally's script I don't
know how to do. So I didn't explain it.

STONED-Detailed-Instruction.php
STONED-Detailed-Instruction.txt
STONED-TNT-PHP.zip

STONED-TNT-zipContents.txt

To put comments in the script preface
each line with a double forward slash

//WRITE COMMENTS LIKE THIS
//FOR EACH LINE OF TEXT

When you have the PHP Stoned tag the way you want it Take the URL that will end in .php and beam it, transload it. When you can rename it name it whatever you like but the extension must be jpg.
You now have a image that you
made from scratch with a script!

If you would rather have Sally's zip.
Please go to her pages.

www.SimplySally.com/GD

.
